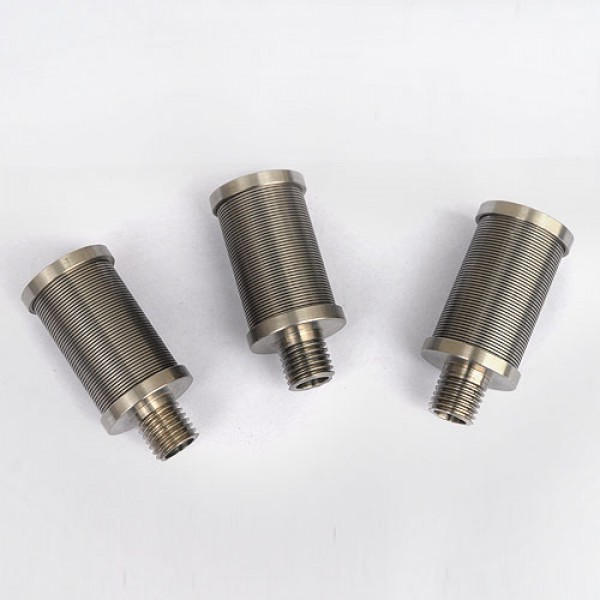

Food Grade SS wedge wire water treatment Filter nozzles

Food Grade SS wedge wire water treatment Filter nozzles

SS wedge wire water treatment Filter nozzles are composed of V-profile wire stainless steel which is spirally wrapped in a certain equal slot. To maintain the slot size around inside and add extra strength are mounted. It has each cover for both ends of the nozzle. Each wire and rod are made by spot welding. and fitting pipe is adjusted according to the thickness of the set bottom plate. The nozzle is completed by welding fitting pipe to a cover of down end after setting screw according to the type of nut.

Advantages of Food Grade SS wedge wire water treatment Filter nozzles

1. Type 316L stainless steel construction.
2. Continuous slot design provides a large circulation area
3. Standard nozzle is 2in/51mm diameter and can be attached to the plate either with threaded end fittings or "L" blots.
4. Standard slot opening typically ranges between 0.006”(0.15mm), and 0.020in./0.50mm wide suitable for 40 to 50 mesh size media, Other slot sizes are also available.
5. Wedge wire screen is highly resistant to plugging.
6. Choice of either 3/4” NPT or 1” NPT fittings are available from stock. Other styles, such as tee-bolt mountings, and drop tubes are readily available.
7. Unaffected by temperature, corrosion-resistant, aging resistant, long life span, easy change, safety, and environmentally friendly.
