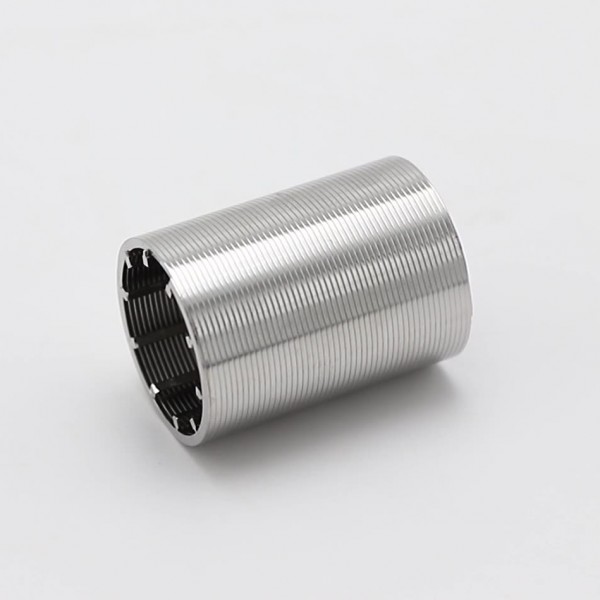

SS Wedge Wire Wrapped Screen Tube

SS Wedge Wire Wrapped Screen Tube

  • Material: stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
  • Properties : wedge wire pipe
  • Use: water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant,refining & petrochemical

SS wedge wire wrapped screen tube is a mechanical self-cleaning device that was developed to meet the growing need and demand for an efficient and economical method of removing suspended solids from mixed liquid streams. The continuous and self-cleaning effect of the rotating screens makes it possible to use higher flow capacities than those of any other type of screen thus resulting in substantial savings with respect to both investment and maintenance.

Wrapped screen tube can be used for conventional filtration, outside-in and reverse filtration, inside-out. The fine wire typically used maximizes the open area. Various fitting options are available with cartridges to help incorporate it into almost any process.


The wedge wire wrapped screen tubes are mainly used for the water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant ,sewage treatment and other industries,water, oil or gas filter and other filtration equipment.


Specifications of SS Wedge Wire Wrapped Screen Tube:

MaterialSS304, SS304L, SS316, SS316L, SS321, Duplex, Hastelloy, etc
OD Range19mm-2000mm
ID Range13mm-1981mm
Length RangeUp to 6000 mm
Slot Range20 micron to 3000 micron (Tolerance:+-5 micron)
Wedge Wire0.5x1.50.75x1.51x21.5*22x32*43*5
Support Rod1.5x2.5
2x3
1.5x2.5
2x3
1.5x2.5
2x3
1.8*2.5
2x3
2x3
2x4
3x5
3x6
3x10
4x7
2x4
3x5
3x6
3x10
4x7
5x6
3x5
3x6
3x10
4x7
5x6
5x8
End FinishingThread fitting, Flange, Closed Plated, Resistance welded closed plate, Metal Ring, etc
NoteCustomized According To Requirement
