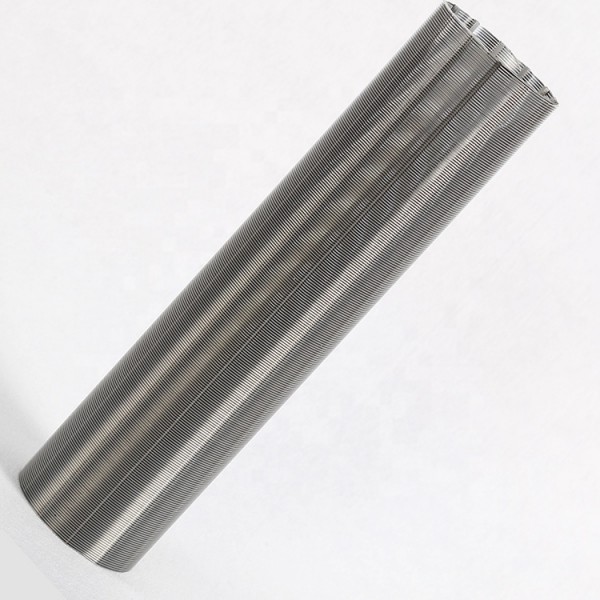

Stainless steel 304 Wedge Wire wire screen tube
- Material: stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
- Properties : wedge wire screen pipe
- Use: water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant,refining & petrochemical
- info@nicestarsteel.com email to us
Details of Stainless steel 304 Wedge Wire wire screen tube
Stainless steel 304 Wedge Wire wire screen tubes are made up of rods and wire. The rod can be round wire, triangular wire or trapezoid wire. The wire is triangular wire (V-shaped wire). Wedge Wire screen tube have a structure and high open area, as well as accurate slot dimension. At the same time, water well screens have heat-resisting, anti-corrosive, good machine capability, last long, safety and reliability and so on characteristics. It can be used in many kinds of medium filtering.
Features of Stainless steel 304 Wedge Wire wire screen tube
1. Screens with high open area are more suitable for the construction of high-quality water wells, oil wells and gas wells.
2. Low cost operation Screens with high open area shall favor groundwater infiltration. Abundant water shall reduce the water levels down, thus to save energy consumption.
3. Reduce the abrasion of the pump
Under the same condition, high open area can make the speed of groundwaters entering into the screen much slower than any other filtration apparatus, which will avoid sands entering into.
Application of Stainless steel 304 Wedge Wire wire screen tube
The stainless steel 304 Wedge Wire wire screen tubes are mainly used for the water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant ,sewage treatment and other industries,water, oil or gas filter and other filtration equipment.
Specifications of Stainless steel 304 Wedge Wire wire screen tube:
Material | SS304, SS304L, SS316, SS316L, SS321, Duplex, Hastelloy, etc | ||||||
OD Range | 19mm-2000mm | ||||||
ID Range | 13mm-1981mm | ||||||
Length Range | Up to 6000 mm | ||||||
Slot Range | 20 micron to 3000 micron (Tolerance:+-5 micron) | ||||||
Wedge Wire | 0.5x1.5 | 0.75x1.5 | 1x2 | 1.5*2 | 2x3 | 2*4 | 3*5 |
Support Rod | 1.5x2.5 2x3 | 1.5x2.5 2x3 | 1.5x2.5 2x3 | 1.8*2.5 2x3 | 2x3 2x4 3x5 3x6 3x10 4x7 | 2x4 3x5 3x6 3x10 4x7 5x6 | 3x5 3x6 3x10 4x7 5x6 5x8 |
End Finishing | Thread fitting, Flange, Closed Plated, Resistance welded closed plate, Metal Ring, etc | ||||||
Note | Customized According To Requirement |
