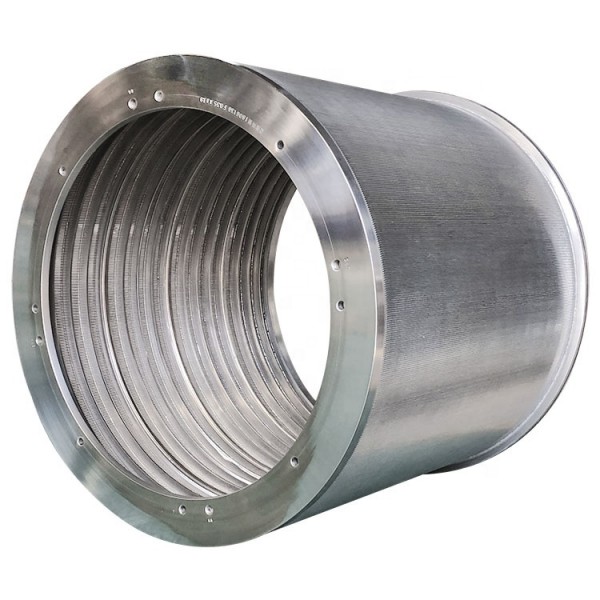

Stainless steel centrifuge sieve screen basket
- Material: stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
- Properties : Wedge Wire Screen Basket
- Use: filters, strainers, architectural screens, water treatment underdrains, media support grids and overlays, infiltration gallery screens
- info@nicestarsteel.com email to us
Screen basket Sieve drum is suitable for pressure screen in pulp making system and paper making system.Our pressure screen basket or sieve drum has been exported to India, Bangladesh, and other countries. All the customers satisfy with our products with a high quality and competitive price. We also can produce the products according to your detailed requirements with drawings.
Sieve drum strength,high fatigue strength, uniform sieve seam width
The surface of bar screen is electrochemical polished, no burr, no cotton hanging.
Easy to leakage, wear resistance, corrosion resistance
The equipment can be properly assembled and modified according to customer requirements to meet the customer's multi-faceted needs. For more information, contact our customer service or visit our factory.
| Model NO. | Screen Area (m2) | Sieve hole size (mm) | Seam Size (mm) | Screen Hole (T/D) | Screen Slot (T/D) | Inlet pulp consistency (%) | Motor Power (Kw) |
| ZNS0.3 | 0.3 | Φ1.6-Φ3.5 | 0.1-0.55 | 50-80 | 30-50 | 1-4 | 22-55 |
| ZNS0.6 | 0.6 | Φ1.6-Φ3.5 | 0.1-0.55 | 90-160 | 60-100 | 1-4 | 30-75 |
| ZNS0.9 | 0.9 | Φ1.6-Φ3.5 | 0.1-0.55 | 135-250 | 90-150 | 1-4 | 37-90 |
| ZNS1.2 | 1.2 | Φ1.6-Φ3.5 | 0.1-0.55 | 180-320 | 120-190 | 1-4 | 45-110 |
| ZNS1.5 | 1.5 | Φ1.6-Φ3.5 | 0.1-0.55 | 200-380 | 140-230 | 1-4 | 55-132 |
| ZNS2 | 2 | Φ1.6-Φ3.5 | 0.1-0.55 | 260-500 | 220-300 | 1-4 | 75-160 |
| ZNS3 | 3 | Φ1.6-Φ3.5 | 0.1-0.55 | 400-700 | 300-450 | 1-4 | 90-220 |
| ZNS4 | 4 | Φ1.6-Φ3.5 | 0.1-0.55 | 500-1000 | 350-730 | 1-4 | 132-280 |
