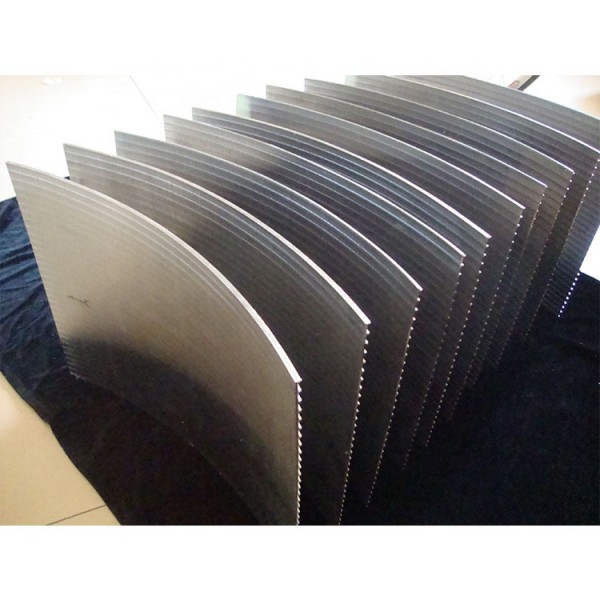

Wedge Wire type 120 degree curved wire screen plate

Material: stainless steel 304,304L,316,316L,321,430 or as per your request.
Properties : sieve bend screen
Use: water-treatment,beer brewing,water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant, refining & petrochemical

info@nicestarsteel.com email to us

Kaiyuan Screens' 120° Sieve Bend Screen are used in static sieves for either dewatering or classification. As the slurry flows over the inclined screen surface, the perpendicular layout of the wires to the flow, allows for solids to be retained while liquid passes through the screen. Made from Vee-Wire screens， the 120 Sieve Bend Screen can provide up to 50 percent more open area with a narrower wire profile.

With a number of manual-handling restrictions. Johanson Screens has developed an innovative split-sieve design. This design offers a simple, economical benefit by reducing the physical size and the weight of the screen.

Product name：	120 sieve bend screen
Material：	stainless steel （ss304,ss316）
Diameter :	1500mm max
Slot:	0.02mm-5.0mm Smaller on available on customer's request
Thickness :	4-10mm
Feature :	1.Reduced equipment and installation costs 2.Low maintenance costs 3.Better flow rate and finer fiber removal 4.Wide range of application 5.Longer screen life 6.Slot sizes range from 25um to 0.394in(10mm） 7.Made with 300series stainless steel
